Large-Scale Fiber Patch Cord Manufacturer in China
The insertion loss of OUFU high-quality fiber patch cords can be controlled within 0.3 dB, significantly reducing the attenuation of optical signals during the connection process and ensuring the stability of long-distance transmission.
OUFU is equipped with fully automatic optical performance testing equipment. Before each fiber patch cord leaves the factory, it undergoes four core tests, including insertion loss, return loss, tensile strength, and temperature cycling. The detection coverage rate is 100%, ensuring that no substandard products enter your market.

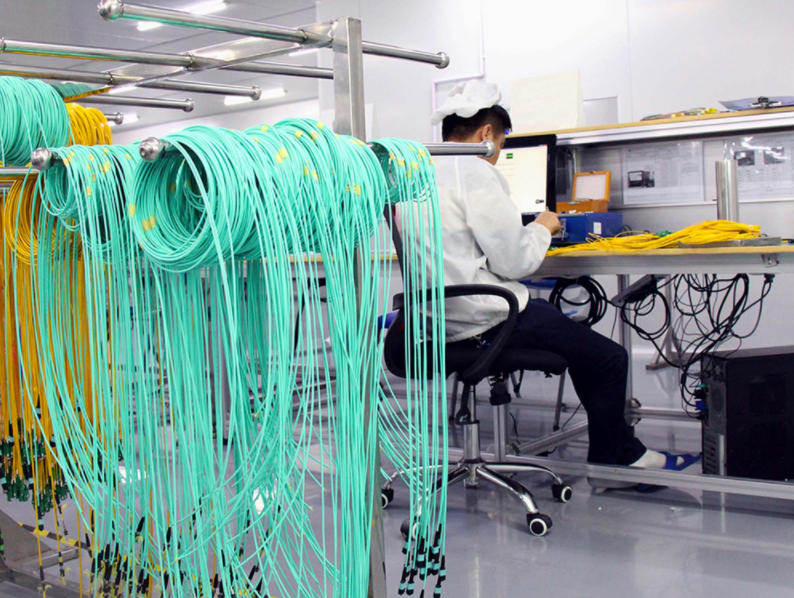

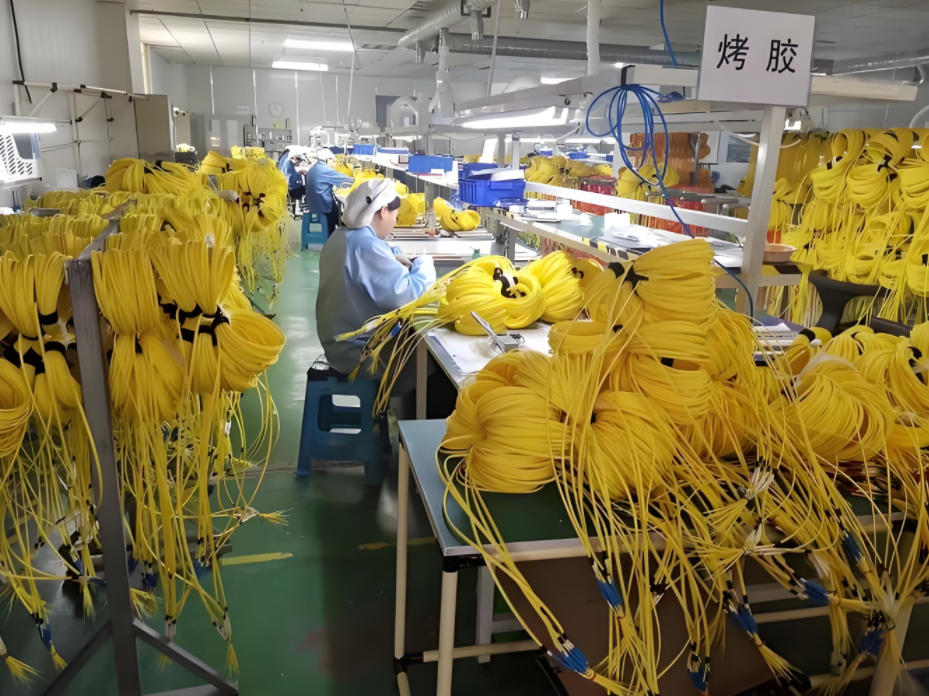

Welcome to visit our factory. Feel free to contact us at any time!
Various Types of Fiber Patch Cord

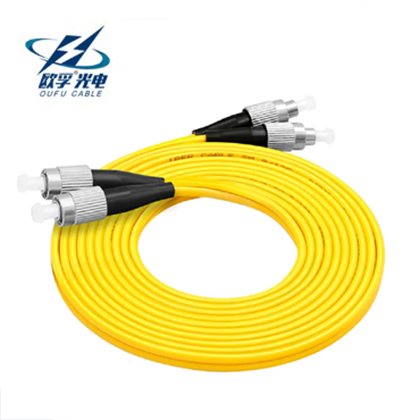

FC Fiber Patch Cord

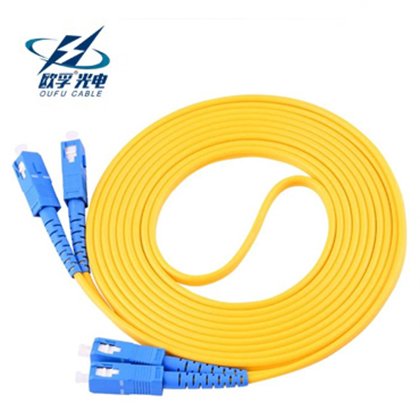

SC Fiber Patch Cord
ST Fiber Patch Cord

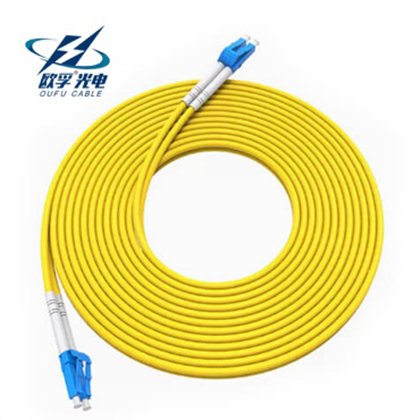

LC Fiber Patch Cord

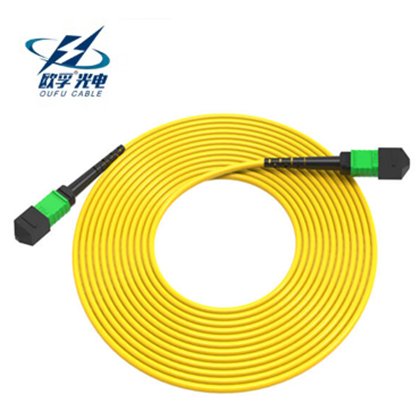

MPO Fiber Patch Cord

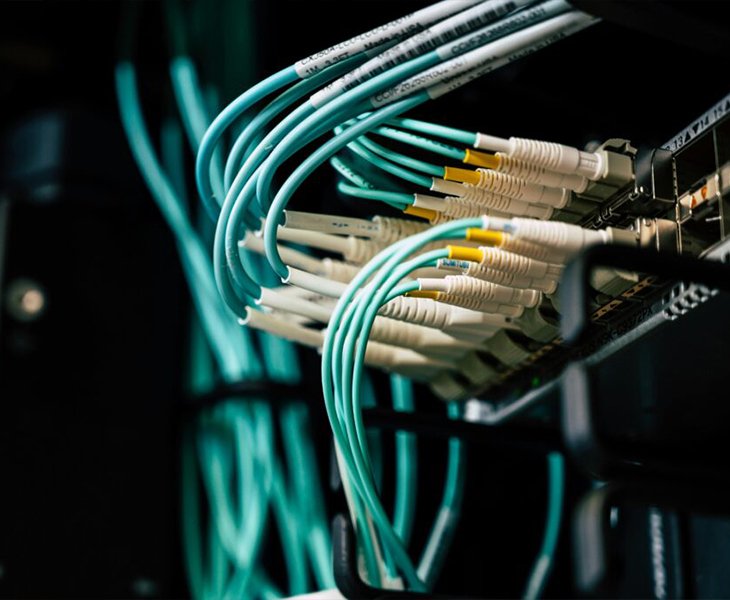

High Adaptability
The fiber patch cords support a full range of connectors including FC, SC, ST, LC, MPO, etc. They can be customized with different connector combinations according to your needs (such as LC-SC). They are suitable for various optical modules, switches, and fiber distribution frames. Customizable lengths ranging from 0.5m to 100m are available to meet different requirements such as short-distance patching within cabinets and cross-region connections in the data center. The cutting and assembly process is convenient.

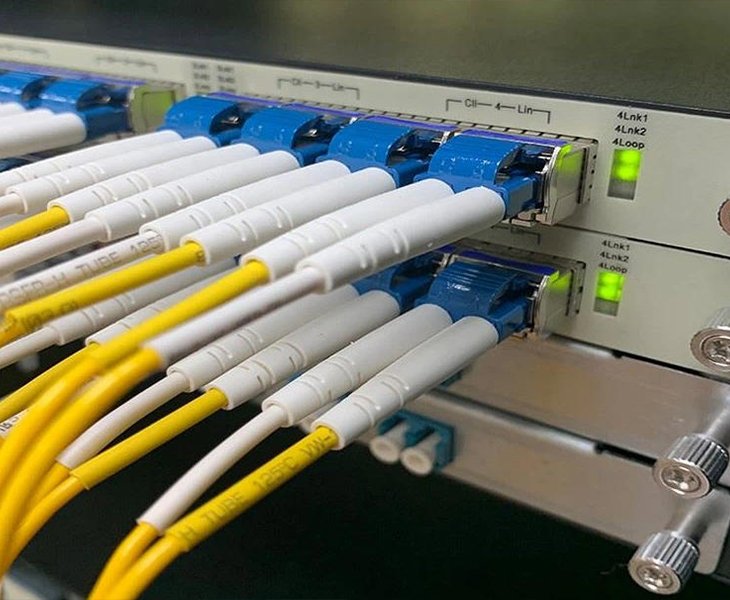

Environmental Protection
The fiber patch cords are equipped with LSZH sheathing. When burned, they do not release toxic gases and produce little smoke. They comply with environmental certifications such as RoHS and REACH, and are suitable for scenarios with high requirements for fire safety. They follow international standards like ITU-T and national standards (GB), ensuring high product consistency and strong interconnection compatibility. You don’t need to worry about the compatibility issues with devices from different brands

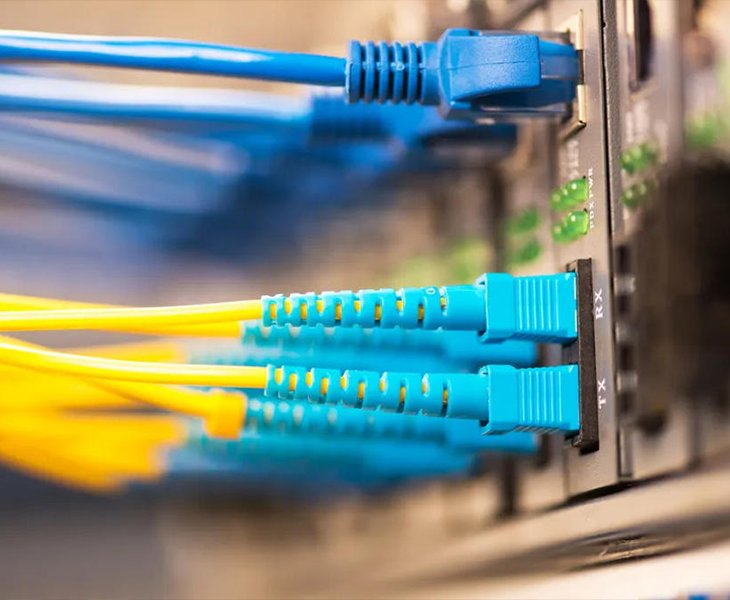

Low Maintenance Cost
The connectors of the fiber patch cords can be plugged and unplugged up to 1000 times, reducing the wear and tear of the connectors and the replacement costs caused by frequent plugging and unplugging. Plug-and-play, no need for fusion splicing. Installation and maintenance do not require professional equipment, significantly reducing the time and manpower costs of your construction and subsequent operation and maintenance.

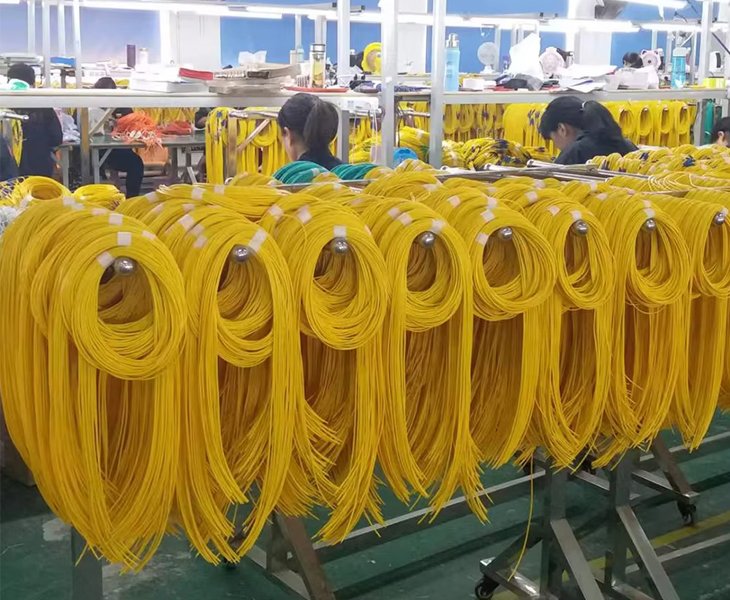

Why Choose OUFU Fiber Patch Cord
OUFU has established a 6-level quality control process. For the fiber patch cords, from the inspection of raw materials upon entry, to the random inspection during production processes, to the comprehensive inspection of finished products, and finally to the management of moisture-proof and dust-proof in storage, each step has traceable quality records. The defective rate is controlled below 0.03%, which is much lower than the industry average.
Color: The outer sheath of single-mode patch cords is mostly yellow, while that of multi-mode is orange or gray. Core diameter: The core diameter of single-mode is 8-10μm, and that of multi-mode is 50/62.5μm. Transmission distance: Single-mode is suitable for long-distance transmission (from tens to hundreds of km), while multi-mode is suitable for short-distance transmission (within 500 m), such as patching within data center cabinets.
The core differences among the three lie in the end face structure and return loss:
PC: Spherical polishing, with a return loss of ≥40dB, meeting the requirements of conventional transmission;
UPC: Ultra-spherical polishing, with a return loss of ≥50dB, lower insertion loss, suitable for high-speed transmission in data centers;
APC: 8°inclined angle polishing, with a return loss of ≥65dB, the best anti-reflection performance, mostly used in high-demand scenarios such as broadcasting, CATV, etc.
Before plugging or unplugging, you need to clean the end face of the connector. You can use dust-free wiping paper dipped in absolute alcohol to wipe it, to avoid increased loss due to dust; when plugging or unplugging, hold the connector housing, do not pull the fiber optic cable body, to prevent the fiber core from breaking; when inserting, align the interface and gently push in; when pulling out, hold the unlock latch and then remove it, to avoid damaging the interface by violent operation.
The fiber patch cords support customization of connector types (such as LC-SC adapters, male-female connector combinations), length customization (0.5m – 1000m in any specification), sheath material customization (PVC/LSZH/ rat-proof armored), and color customization (matching your brand color).
There are mainly three reasons: The connector end face gets contaminated with dust or oil, causing the insertion loss to rise; The fiber patch cords is overly bent or squeezed, resulting in minor bending damage to the fiber core; The joint becomes loose and has poor contact with the equipment interface. It is recommended that you clean the end face regularly, check if the wiring is in order, and replace the damaged fiber patch cords in time.
