ADSS Fiber Optic Cable, full name All Dielectric Self-Supporting Fiber Optic Cable, is the most widely used aerial communication optical cable in global power grid, telecommunication and outdoor overhead network construction. Different from traditional overhead cables with metal strength members, ADSS cable adopts 100% non-metallic full dielectric structure, independent self-supporting design, can be directly hung on high-voltage power towers without additional messenger wire, and perfectly solves the communication networking demand under high voltage, strong electromagnetic interference and lightning-prone environments. In recent years, with the global promotion of smart power grid, 5G base station coverage, rural broadband upgrade and outdoor long-distance communication projects, the market demand for ADSS Fiber Optic Cable has maintained rapid growth. This article comprehensively analyzes ADSS cable from definition, structural design, core advantages, technical parameters, classification, application scenarios, installation specifications, selection tips, market trends and comparison with similar products, and provides professional and complete reference information for global purchasers, engineers and distributors.

1. Basic Definition & Working Principle of ADSS Fiber Optic Cable

ADSS Fiber Optic Cable is a fully insulated, self-bearing aerial optical cable composed entirely of non-conductive dielectric materials. The core definition includes two key attributes:

All Dielectric: No steel wire, no metal reinforcing parts, all components (central strength member, reinforcing layer, sheath) are non-metallic materials, completely insulated, no electromagnetic induction, no lightning strike risk, safe for parallel erection with high-voltage power lines.
Self-Supporting: The cable itself integrates high-strength bearing structure, can bear its own weight, wind load, ice load and external tension, directly fixed on power towers, poles and overhead supports, no need for additional steel messenger wire, greatly reduces construction cost and tower load.

The working principle of ADSS Fiber Optic Cable: The optical fiber transmits high-speed, low-loss optical signal in the loose tube; the non-metallic FRP central strength member and aramid yarn bear mechanical tension; the outer sheath provides waterproof, UV-resistant, weather-resistant and anti-electric trace protection; the whole cable realizes stable long-distance optical signal transmission under complex outdoor overhead conditions. It is the best matching communication cable for 6kV~500kV high-voltage transmission lines, and the core product of power communication network construction worldwide.

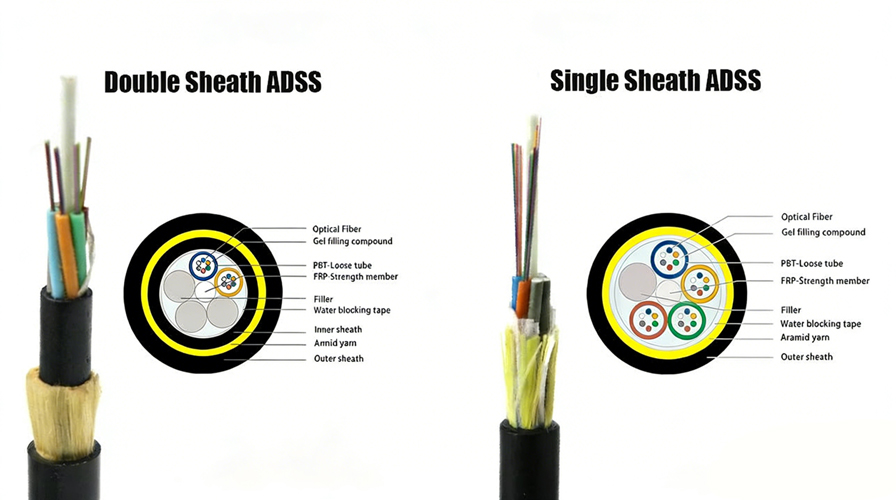

2. Complete Structural Composition of ADSS Aerial Fiber Optic Cable

Professional structural design is the core competitiveness of high-quality ADSS Fiber Optic Cable. Standard loose tube stranded ADSS cable adopts layered composite structure from inside to outside, each layer matches different functional requirements, details are as follows:

2.1 Inner Optical Fiber Unit

Adopts standard 250μm single mode G652D/G657A bending insensitive optical fiber, low attenuation, high bandwidth, suitable for long-distance outdoor transmission. Optical fibers are placed in high-modulus plastic loose tubes, loose tube filled with waterproof hydrophobic compound, which isolates optical fiber from external stress, prevents water intrusion, and ensures optical fiber strain ≤0.1% under maximum tension.

2.2 Non-Metallic Central Strength Member (FRP)

FRP fiber reinforced plastic central rod, non-conductive, high elastic modulus, anti-corrosion, anti-aging, undertakes basic axial tension of the cable, avoids metal induction current and lightning hazard, which is the core difference between ADSS cable and traditional metal overhead cable.

2.3 Loose Tube Stranded Cable Core

Loose tubes and filling ropes are evenly stranded around FRP central core to form compact circular cable core; gaps filled with water-blocking ointment to realize full longitudinal water resistance, meet IEC waterproof standard, adapt to rainy and humid outdoor environment.

2.4 Inner PE Sheath

Extruded high-density polyethylene inner sheath outside cable core, isolates cable core and outer reinforcing layer, plays buffer, insulation and secondary waterproof role.

2.5 Aramid Yarn Bearing Layer (Key Self-Supporting Structure)

High-strength aramid yarn (Kevlar) is evenly stranded outside inner sheath, which is the main bearing part of ADSS self-supporting performance. Aramid yarn has ultra-high tensile strength (higher than steel wire per unit weight), light weight, non-conductive, anti-fatigue, can adjust laying span by changing aramid yarn quantity, realize 100m~1000m ultra-long span overhead erection.

2.6 Outer Sheath (PE Sheath & AT Anti-Tracking Sheath)

Two mainstream sheath types for ADSS Fiber Optic Cable:

PE Outdoor Sheath: HDPE anti-UV weather-resistant sheath, suitable for ≤110kV power line environment, low cost, excellent anti-aging performance.
AT Anti-Tracking Sheath: Anti-electric trace modified polyethylene sheath, resistant to electric corrosion, electric arc damage, specially used for 110kV~220kV high-voltage tower environment, effectively solves electric trace aging problem under high electric field.

Complete structure ensures ADSS cable has light weight, small diameter, high tension resistance, full insulation, waterproof and weather-resistant comprehensive performance.

3. Core Advantages of ADSS All Dielectric Self-Supporting Cable (Multi-Dimensional Analysis)

Compared with OPGW cable, metal messenger aerial cable and underground cable, ADSS Fiber Optic Cable has obvious comprehensive advantages, which is why it occupies more than 60% market share in global power communication overhead projects:

3.1 Full Insulation & High Electrical Safety (Core Advantage)

100% non-metallic structure, no induced current under high voltage electric field, no lightning strike damage risk, can be erected in parallel with high-voltage transmission lines, can construct without power outage, greatly reduces power grid construction loss. Suitable for thunderstorm-prone areas, high-voltage power corridors, strong electromagnetic interference industrial areas.

3.2 Self-Supporting Design, Low Construction & Operation Cost

No additional messenger steel wire needed, reduces tower load, reduces hardware fittings quantity, shorter construction period, construction cost reduced by 30%+ compared with messenger aerial cable. Light weight and small diameter, low wind resistance and ice coating load, reduces daily operation maintenance cost of power towers.

3.3 Ultra-Long Span Overhead Performance

Optimized aramid yarn structure supports maximum 1000m ultra-long span erection, easily crosses rivers, valleys, mountains and complex terrain, reduces tower erection quantity, greatly improves project economy. Meets EDS daily operating tension, MAT allowable tension and UTS ultimate tension national & international standards.

3.4 Excellent Outdoor Weather Resistance & Long Service Life

PE/AT outer sheath meets anti-UV, anti-aging, anti-acid and alkali corrosion, wide operating temperature range (-40℃~+70℃), adapts to cold, high temperature, rainy, windy and icy harsh environments. Design service life ≥30 years, stable performance in whole life cycle.

3.5 Low Optical Attenuation & High-Speed Transmission Performance

Adopts G652D/G657A single mode fiber, low transmission loss, large bandwidth, supports 5G, smart grid data monitoring, power dispatch, video surveillance and high-speed broadband transmission, meets future network upgrade requirements.

3.6 Flexible Specification & Wide Adaptability

Complete core number series: ADSS 2 core, 4 core, 8 core, 12 core, 24 core, 48 core, 96 core, 144 core fiber cable; supports different span, different voltage level customized production, meets small distribution network and large high-voltage grid projects.

4. Main Technical Parameters & Classification of ADSS Fiber Optic Cable

4.1 Key Mechanical & Optical Parameters

Optical fiber type: G652D standard single mode / G657A bending insensitive single mode
Core count: 2~288 cores optional
Operating temperature: -40℃ ~ +70℃
Maximum span: 100m~1000m
Daily operating tension EDS, allowable tension MAT, ultimate tension UTS compliant with IEC 60794 standard
Water resistance: Full longitudinal water blocking, no water penetration under standard test
Anti-UV grade: C4 outdoor anti-aging grade

4.2 Common Classification of ADSS Cable

By sheath material: ADSS PE Outdoor Cable, ADSS AT Anti-Tracking Cable
By fiber core number: ADSS 24 Core Fiber Optic Cable, ADSS 48 Core Cable, ADSS 96 Core ADSS Cable
By erection span: Short span ADSS cable, medium span ADSS cable, Long Span ADSS Optical Cable (≥500m)
By application voltage: ADSS cable for 110kV power line, ADSS cable for 220kV transmission tower
By structure: Central tube ADSS cable, loose tube stranded ADSS cable (mainstream)

5. Global Application Scenarios of ADSS Aerial Fiber Optic Cable

ADSS Fiber Optic Cable is widely used in outdoor overhead communication projects all over the world, covering power grid, telecommunication, transportation, municipal administration and other fields, with strong regional geographical adaptability:

5.1 Power Grid Communication (Main Application Field)

Parallel erection on 6kV, 35kV, 110kV, 220kV high-voltage power towers, used for power dispatch automation, distribution network monitoring, intelligent meter reading, power fault warning, OPGW cable relay connection and power private network construction. It is the standard communication cable for power grid reconstruction projects in Asia, Europe, Africa, Southeast Asia and South America.

5.2 Telecommunication & 5G Broadband Construction

Telecom operators use ADSS Aerial Fiber Cable for rural broadband access, suburban 5G base station backhaul network, urban overhead pipeline reconstruction, quickly realize outdoor fiber coverage without digging underground pipelines.

5.3 Transportation & Municipal Engineering

Railway communication, highway traffic signal monitoring, ETC system, municipal street lamp pole overhead communication, environmental monitoring data transmission, suitable for outdoor long-distance open environment.

5.4 Special Harsh Environment Projects

Thunderstorm areas, high altitude cold areas, coastal salt fog areas, river valley long-span crossing projects, give full play to ADSS full insulation and long-span advantages.

6. ADSS Cable Installation Specification & Construction Guide

Standard installation is the key to ensure long-term stable operation of ADSS Fiber Optic Cable. This part covers high-frequency search long-tail word ADSS Cable Installation Guide:

Select corresponding span grade ADSS cable according to tower distance, wind speed and ice coating condition.
Choose PE sheath for ≤110kV line, must choose AT anti-tracking sheath for ≥110kV high voltage line.
Use special ADSS suspension hardware, tension hardware, avoid direct metal contact with cable sheath.
Control cable sag strictly, ensure optical fiber strain within safe range during erection.
Construction can be carried out without power outage on original power towers, which is the biggest construction advantage of ADSS cable.
Do not exceed minimum bending radius during laying and construction, avoid excessive extrusion and friction damage.

7. ADSS Cable vs OPGW Cable | Difference Comparison Guide

High-frequency user search question type long-tail word layout: ADSS Cable vs OPGW Cable

ADSS Cable: Full dielectric self-supporting, parallel erection on power tower, no power outage construction, low cost, suitable for distribution network & medium voltage line; independent communication function only.
OPGW Cable: Optical fiber composite overhead ground wire, integrated lightning protection and communication function, installed on top of tower, high cost, needs power outage construction, suitable for high-voltage main grid backbone line.

In actual projects, ADSS cable is mostly used for distribution network branch lines and reconstruction projects, OPGW for main grid backbone lines, two products complement each other.

8. Market Trend & Purchase Suggestion of ADSS Fiber Optic Cable

In 2025-2030, global smart power grid upgrade, 5G full coverage, emerging market infrastructure construction will drive continuous growth of ADSS Fiber Optic Cable market demand. Global purchasers are more concerned about stable quality, factory direct supply, customized specifications and competitive price.

Purchase suggestions:

Choose regular professional ADSS Cable Manufacturer China, ensure compliance with IEC international standard.
Confirm voltage level, span, fiber core number, sheath type (PE/AT) before ordering.
Prioritize loose tube stranded aramid yarn enhanced ADSS cable for long-term outdoor operation.
Select products with complete test report, waterproof, anti-UV, anti-tracking performance certification.

9. Conclusion

ADSS Fiber Optic Cable (All Dielectric Self-Supporting Optical Fiber Cable) is an irreplaceable core aerial communication product in modern power grid, telecommunication outdoor network construction. With advantages of full insulation safety, self-supporting cost saving, ultra-long span, weather resistance and flexible specifications, it has become the first choice for global overhead communication projects.

Frequently Asked Questions (FAQ)

How many cores are available for ADSS fiber cable?

We supply full range cores: ADSS 2 core, 4 core, 8 core, 12 core, 24 core, 48 core, 96 core, 144 core ADSS fiber optic cable, up to 288 cores customized.

What span can ADSS aerial cable support?

Standard short span, medium span and long span ADSS optical cable are available.

Normal span: 100m, 200m, 300m, 400m.

Long span ADSS cable: 500m, 600m, 800m, up to 1000m ultra long span.

Can ADSS cable be installed on high voltage power towers?

Yes. ADSS all dielectric self-supporting cable is specially designed for parallel erection on 6kV, 35kV, 110kV, 220kV high voltage transmission towers. It can be installed without power outage.

What fiber type is used in ADSS cable?

Standard single mode G652D fiber, and bending insensitive G657A fiber are optional. Low attenuation, suitable for long distance outdoor overhead communication transmission.

What is the service life of ADSS fiber optic cable?

Design service life ≥30 years. With anti-UV, anti-aging, waterproof, anti-corrosion sheath, suitable for harsh outdoor weather environment.

What’s the difference between ADSS cable and OPGW cable?

ADSS: All dielectric self-supporting, low cost, no power outage construction, used for distribution network & reconstruction projects.
OPGW: Optical fiber composite overhead ground wire, with lightning protection function, installed on tower top, high cost, for main power grid backbone lines.

Does ADSS cable need additional messenger wire?

No. ADSS cable is self-supporting itself, integrated aramid yarn bearing layer, no need for extra steel messenger wire, saves installation cost and tower load.

Is ADSS cable waterproof and anti-UV?

Yes. Full longitudinal water blocking structure, high density anti-UV HDPE outer sheath, waterproof, anti-aging, anti-wind, anti-ice coating, adapt to -40℃~+70℃ temperature.

Can I customize ADSS cable according to my project requirements?

Yes. We are professional ADSS cable manufacturer in China, support customized core count, span length, sheath type (PE/AT), fiber type, length and package.

What applications does ADSS aerial fiber cable have?

Power grid communication, power dispatch, 5G base station backhaul, rural broadband access, railway communication, highway monitoring, overhead long distance communication projects worldwide.

Is ADSS cable anti-lightning and anti-electromagnetic interference?

Yes. Full non-metallic structure, no induced current in high voltage electric field, no lightning damage, very suitable for thunderstorm and high electromagnetic interference areas.
