Fiber optic cables have become the backbone of modern communication networks, supporting high-speed internet, 5G infrastructure, data centers, industrial automation, and global telecommunications systems.

However, not all fiber optic cables are the same. Different applications require different cable structures, protection levels, installation methods, and performance characteristics.

So, what are the main types of fiber optic cables?

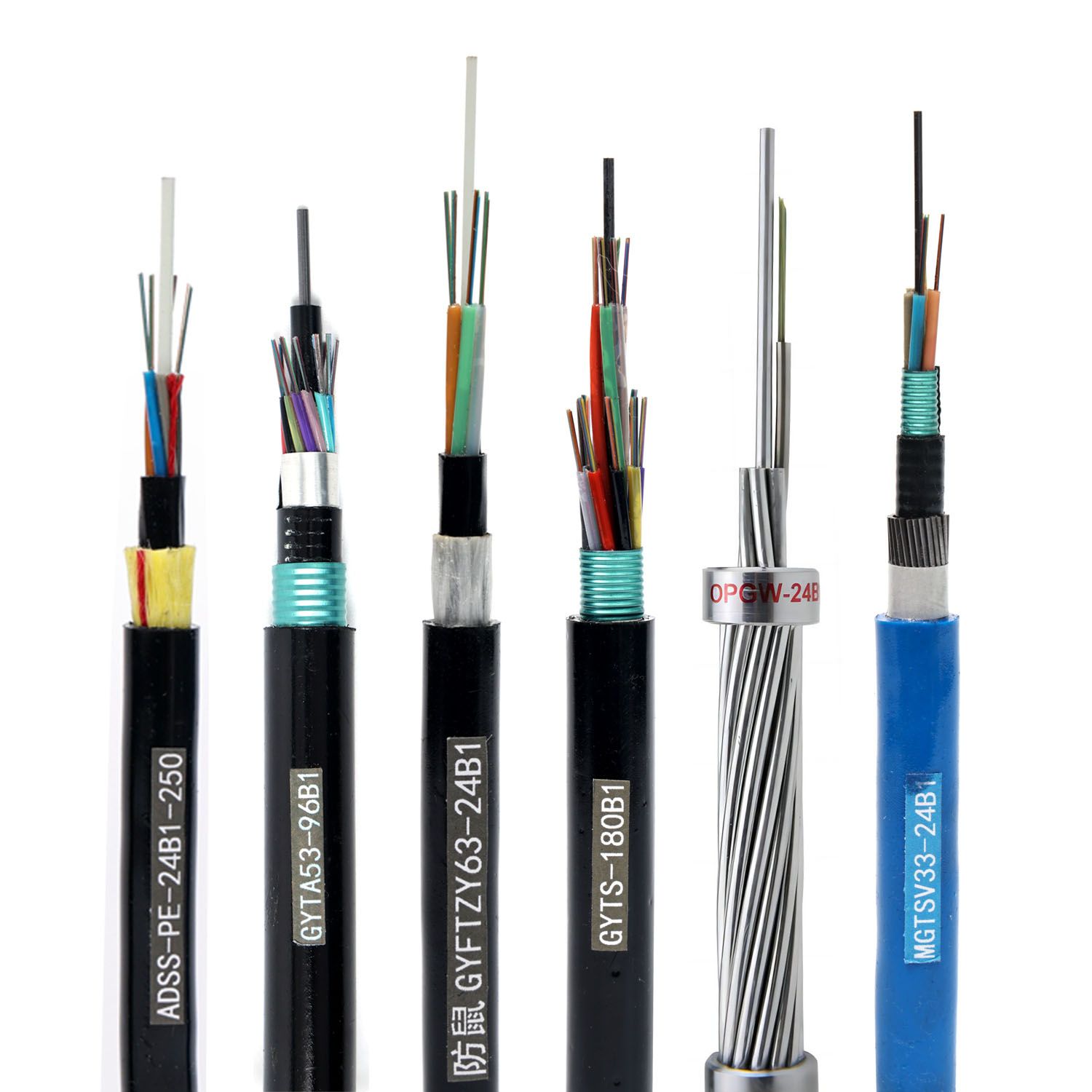

The main types of fiber optic cables include:

• ADSS Fiber Optic Cable (All-Dielectric Self-Supporting Cable)
• OPGW Fiber Optic Cable (Optical Ground Wire Cable)
• GYTA Fiber Optic Cable
• GYTS Fiber Optic Cable
• GYXTW Fiber Optic Cable
• FTTH Drop Cable
• Armored Fiber Optic Cable
• ASU Fiber Optic Cable
• Direct Burial Fiber Optic Cable
• Duct Fiber Optic Cable
• Aerial Fiber Optic Cable
• Submarine Fiber Optic Cable

Each cable type is designed for specific environments, from overhead power transmission lines to underground networks and home fiber connections.

This guide explains the major fiber optic cable types, their structures, applications, advantages, and how to choose the right cable for your project.

1. ADSS Fiber Optic Cable (All-Dielectric Self-Supporting Cable)

What Is ADSS Fiber Optic Cable?

ADSS cable is one of the most popular aerial fiber optic cables used in outdoor communication networks.

ADSS stands for All-Dielectric Self-Supporting, meaning the cable contains no metallic components and can be installed directly on utility poles or transmission towers without additional messenger wires.

The cable structure usually includes:

• Optical fibers
• Loose tubes
• Central strength member (FRP)
• Aramid yarn reinforcement
• Outer PE jacket

Advantages of ADSS Cable

1. Easy Aerial Installation

Because ADSS cable is self-supporting, it does not require steel messenger wires, reducing installation costs.

2. High Mechanical Strength

Aramid yarn provides excellent tensile strength, allowing the cable to withstand wind, ice, and long-span installations.

3. Non-Metallic Design

ADSS cable is immune to electromagnetic interference and suitable for high-voltage environments.

Common Applications

ADSS cable is widely used for:

• Power utility communication networks
• FTTH backbone networks
• Long-distance aerial fiber networks
• Rural broadband projects

2. OPGW Fiber Optic Cable (Optical Ground Wire)

What Is OPGW Cable?

OPGW cable combines optical fiber communication and overhead grounding functions.

It replaces traditional ground wires on high-voltage transmission lines while providing a communication channel.

The structure includes:

• Aluminum alloy tubes
• Stainless steel tubes
• Optical fibers
• Metal protection layers

Benefits of OPGW Cable

• Provides grounding protection
• Enables power grid communication
• High mechanical strength
• Excellent lightning resistance

Applications

OPGW cables are mainly used in:

• High-voltage transmission lines
• Smart grid systems
• Utility communication networks

3. GYTA Fiber Optic Cable

What Is GYTA Cable?

GYTA is an outdoor loose tube armored fiber optic cable commonly used for duct and direct buried applications.

GYTA structure:

• Loose tube design
• Aluminum tape armor
• PE outer sheath
• Central strength member

Advantages

• Excellent moisture resistance
• Good mechanical protection
• Suitable for harsh outdoor environments

Applications

GYTA cable is commonly used for:

• Metropolitan area networks (MAN)
• Underground communication networks
• Telecom backbone systems

4. GYTS Fiber Optic Cable

What Is GYTS Cable?

GYTS is a steel tape armored outdoor fiber optic cable designed for applications requiring stronger mechanical protection.

Compared with GYTA, GYTS uses steel tape armor.

GYTS Advantages

• Higher crush resistance
• Better rodent protection
• Suitable for direct burial

Typical Applications

• Underground fiber networks
• Long-distance communication lines
• Railway communication systems

5. GYXTW Fiber Optic Cable

What Is GYXTW Cable?

GYXTW is a compact outdoor fiber optic cable featuring:

• Central loose tube
• Steel tape armor
• Water-blocking materials
• PE sheath

It is designed for small-core-count applications.

Features

• Compact diameter
• Easy installation
• Cost-effective solution

Applications

• Access networks
• Short-distance outdoor connections
• Industrial communication systems

6. FTTH Drop Cable

What Is FTTH Drop Cable?

FTTH Drop Cable is specifically designed for Fiber To The Home networks.

It connects the user’s home or building to the fiber distribution point.

Common structures include:

• GJXH
• GJXFH
• GJYXCH
• GJYXFCH

Advantages

• Lightweight
• Flexible
• Easy installation
• Low bending loss

Applications

FTTH drop cables are used in:

• Residential broadband
• Apartment buildings
• Fiber access networks

7. Armored Fiber Optic Cable

What Is Armored Fiber Cable?

Armored fiber optic cables include additional protective layers to prevent physical damage.

Armor types include:

• Steel tape armor
• Aluminum armor
• Stainless steel armor

Advantages

• High crush resistance
• Rodent protection
• Suitable for industrial environments

Applications

Armored cables are used in:

• Mining
• Military communication
• Industrial automation
• Data centers

8. ASU Fiber Optic Cable

What Is ASU Cable?

ASU cable is a lightweight all-dielectric aerial fiber optic cable widely used in South America, Africa, and emerging markets.

Its design usually includes:

• Loose tube
• FRP strength member
• HDPE sheath

Benefits

• Lightweight
• Low installation cost
• Excellent weather resistance

Applications

• Rural broadband
• Aerial networks
• Telecom access projects

9. Direct Burial Fiber Optic Cable

What Is Direct Burial Fiber Cable?

Direct burial cables are designed to be installed directly underground without additional protection pipes.

They usually include:

• Armored structure
• Water-blocking layer
• Strong outer jacket

Advantages

• Reduced installation cost
• Strong environmental protection
• Long service life

Applications

• Underground backbone networks
• Campus networks
• Industrial sites

10. Duct Fiber Optic Cable

What Is Duct Cable?

Duct fiber optic cable is installed inside underground ducts or conduits.

It is commonly used where future network expansion is required.

Advantages

• Easy maintenance
• Flexible upgrades
• Lower replacement cost

Applications

• City networks
• Telecom infrastructure
• Data communication systems

11. Aerial Fiber Optic Cable

What Is Aerial Fiber Cable?

Aerial fiber optic cables are installed above ground using poles or towers.

Main types include:

• ADSS cable
• Figure 8 cable
• Messenger-supported cable

Advantages

• Fast deployment
• Lower construction cost
• Suitable for rural areas

12. Submarine Fiber Optic Cable

What Is Submarine Fiber Cable?

Submarine fiber optic cables transmit data across oceans and connect continents.

They contain:

• Optical fibers
• Waterproof layers
• Steel armor
• Protective polyethylene sheath

Applications

• International internet backbone
• Data center connectivity
• Global telecommunications

Fiber Optic Cable Types Comparison Table

How to Choose the Right Fiber Optic Cable?

Choosing the correct fiber optic cable depends on several factors:

1. Installation Environment

Ask:

• Indoor or outdoor?
• Underground or aerial?
• High voltage environment?
• Extreme weather conditions?

2. Fiber Count Requirement

Common fiber counts include:

• 4 core
• 12 core
• 24 core
• 48 core
• 96 core
• 144 core
• 288 core

3. Mechanical Protection

For harsh environments, choose:

• Armored cable
• Steel tape armored cable
• Direct burial cable

4. Fiber Type

Common fiber types:

• Single mode fiber (SMF)
• Multimode fiber (MMF)

Popular single-mode fibers:

• G652D
• G657A1
• G657A2

Frequently Asked Questions (FAQ)

1. What are the most common types of fiber optic cables?

The most common fiber optic cables include ADSS, OPGW, GYTA, GYTS, FTTH Drop Cable, Armored Fiber Cable, and ASU Cable.

2. Which fiber optic cable is best for outdoor use?

For outdoor applications, ADSS, GYTA, GYTS, and armored fiber optic cables are commonly used because they provide strong weather resistance.

3. What is the difference between ADSS and GYTS cable?

ADSS is mainly used for aerial installation without metallic components, while GYTS is an armored underground cable designed for higher mechanical protection.

4. Which fiber optic cable is used for FTTH?

FTTH Drop Cable is specifically designed for home fiber connections because it is lightweight and flexible.

5. How long does fiber optic cable last?

High-quality fiber optic cables can typically operate for 25–30 years or more when properly installed.

Conclusion: Choosing the Right Fiber Optic Cable Type

The main types of fiber optic cables are designed for different network environments and installation requirements.

Whether you need an aerial ADSS cable for power networks, GYTS cable for underground deployment, FTTH Drop Cable for home broadband, or armored cable for industrial applications, selecting the correct cable type is essential for network reliability and long-term performance.

A professional OUFU fiber optic cable manufacturer can provide customized solutions based on:

• Fiber count
• Installation method
• Environmental conditions
• Transmission requirements
• Project budget

Choosing the right fiber optic cable ensures faster deployment, lower maintenance costs, and a more reliable communication network.
